Drum Washer

Overview:

A drum washer is an industrial cleaning machine used to wash and sanitize large cylindrical containers, often called drums or barrels. These containers are typically used to store liquids, powders, or solid products. Drum washers are commonly found in industries such as food processing, chemical manufacturing, and pharmaceuticals, where hygiene and cleanliness are critical.

Key Components:

1. Rotating Drum or Drum Holder:Holds the drum in place and rotates it during the cleaning process to ensure even washing.
2. High-Pressure Wash Jets: Sprays water or cleaning solution at high pressure to remove dirt, residues, and contaminants.
3. Detergent Tank:Contains detergent solution used in the washing process.
4. Rinse System:A clean water rinse to remove detergent and residual contaminants.
5. Control Panel:Allows users to adjust washing cycles, detergent concentration, and water temperature.
6. Drying System: A blower or heating mechanism that dries the drum after washing.

Washing Process:

1. Loading:The drum is loaded onto the washer or into the rotating drum holder.
2. Initial Rinse:High-pressure water jets spray the drum to remove loose debris and residues.
3. Detergent Wash:A detergent solution is applied to break down grease, oils, and other contaminants.
4. High-Pressure Rinse:Clean water rinses the drum to remove detergent and residual contaminants.
5. Drying: The drum is air-dried using blowers or heated air to remove excess moisture.
6. Unloading: The cleaned and dried drum is removed and ready for reuse or storage.

Operational Best Practices:

1. Pre-Inspection:Check the drum for any large debris or residues before washing.
2. Optimize Detergent Use: Ensure the correct concentration of detergent for the type of contamination to avoid waste.
3. Adjust Cycle Time: Set the wash cycle duration according to the level of contamination and drum size.
4. Maintain Regular Cleaning: Clean the washer components, such as nozzles and filters, regularly to prevent clogs.

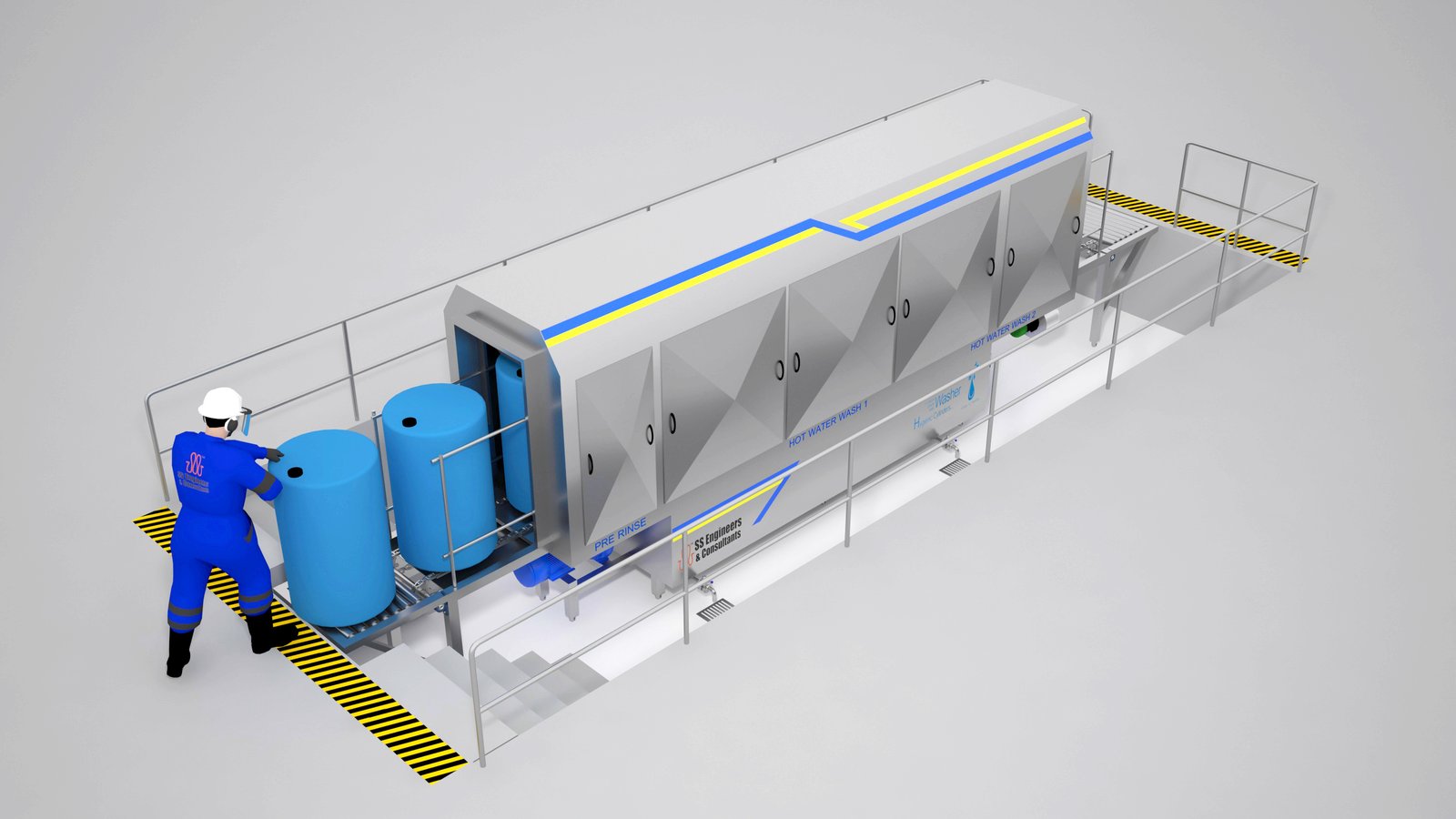

Engineers & Consultants' Drum Washer is designed to deliver powerful, thorough cleaning for open-top drums using a combination of static and adjustable spray nozzles. The system features an adjustable conveyor speed, allowing each drum to pass through a spray tunnel equipped with fixed nozzles or a static spray bar, ensuring consistent coverage throughout the cleaning process.

As each drum moves along the conveyor, the Drum Washer’s spray tunnel thoroughly washes and cleans the surfaces, optimizing sanitation for industrial needs. Built for efficiency, this system provides high-quality cleaning performance, making it ideal for various industrial applications.

CATALOGUE

ENQUIRY NOW

Frequently Asked Questions

A drum washer is a machine designed to clean drums, barrels, or other cylindrical containers by spraying high-pressure water or cleaning solutions inside the drum. It effectively removes residues, contaminants, and stains without requiring manual cleaning.

Most washing machines come with a "drum clean" cycle. Run this cycle with an empty load, adding a drum cleaner or a cup of white vinegar to help remove residue and odors. It’s recommended to clean the drum every 1-3 months for optimal hygiene and performance.

Common LG drum washer error codes include "IE" (indicating water inlet issues), "OE" (drainage problems), and "LE" (motor issues). Each error typically requires checking filters, hoses, and water connections. Refer to your user manual for troubleshooting steps specific to each error.

A noisy or vibrating washer drum may be due to an unbalanced load, loose drum bolts, or worn-out drum bearings. To fix, redistribute the laundry evenly, check that the washer is level, or consider replacing bearings if the problem persists. Professional repair may be necessary for severe cases.

Yes, many people repurpose old washer drums as fire pits because they are heat-resistant and have built-in ventilation holes. Ensure the drum is cleaned thoroughly, remove any remaining machine parts, and place it safely in a fire-safe area before use.

Drum Washer

Frequently Asked Questions

1. What is a drum washer, and how does it work?

2. How do I clean the drum of my washing machine?

3. What are common error codes on an LG smart drum washer, and how can I fix them?

4. Why is my washing machine drum making noise or vibrating excessively?

5. Can I use my washer drum as a fire pit?
