Clean in Place Systems

OverView:

A Clean-in-Place (CIP) system is an automated method used to clean the internal surfaces of equipment, piping, tanks, and process lines without the need for disassembly. CIP is essential in industries where hygiene and cleanliness are critical, such as dairy, pharmaceuticals, and beverages.

Key Components:

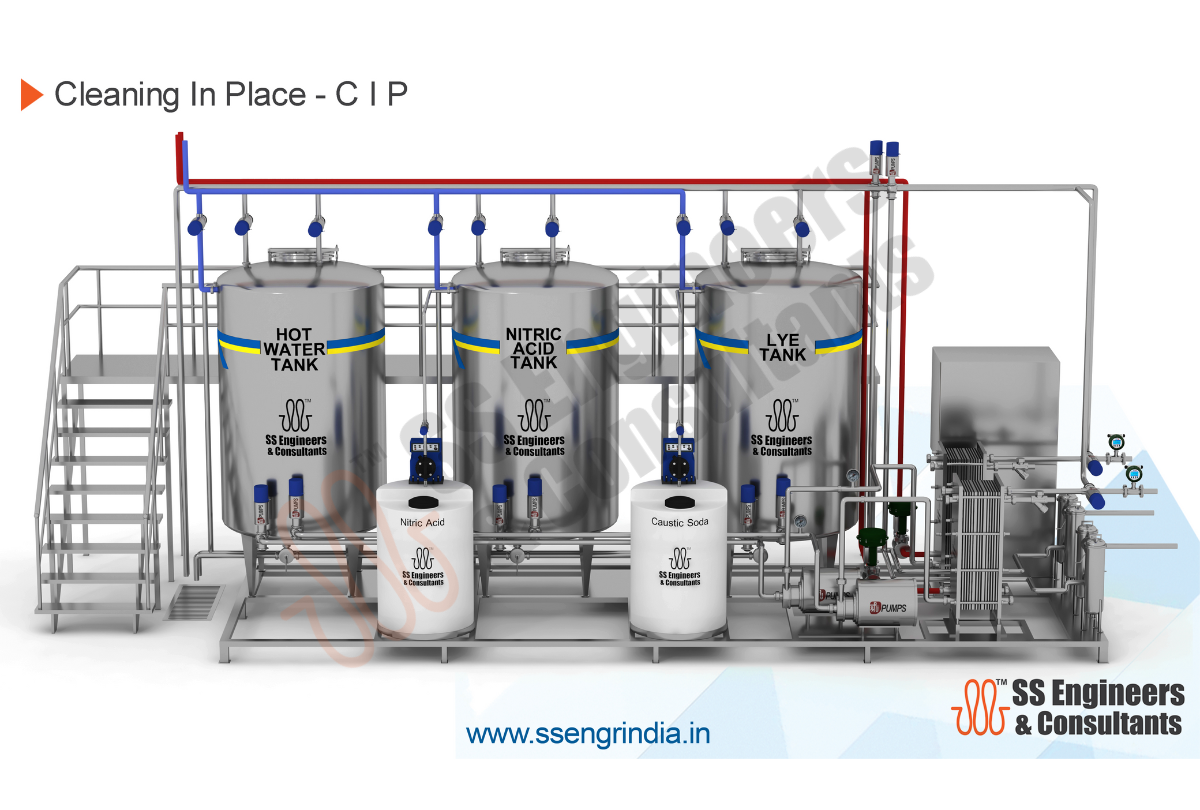

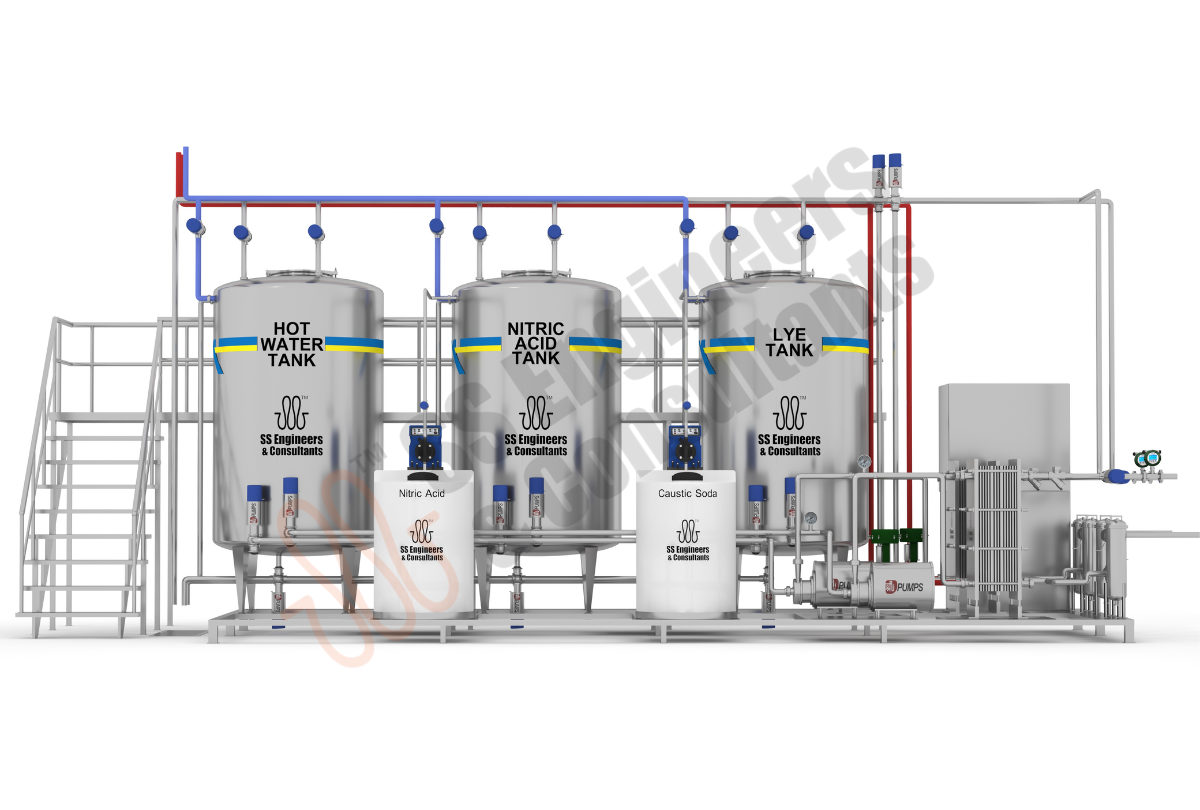

1. CIP Tanks: For holding cleaning agents like water, caustic solutions, or acid.
2. Pumps: To circulate cleaning fluids through the system.
3. Heat Exchangers: To heat cleaning solutions as needed.
4. Valves & Piping: For directing the flow of cleaning agents.
5. Control Systems: Automation for regulating temperature, flow, and concentration of cleaning agents.
6. Sensors & Flow Meters: For monitoring parameters like temperature, pressure, and flow rate.

Process Steps:

1. Pre-Rinse:

->Rinse the system with clean water to remove residues and particles.
->Water is flushed through the system and drained.

2. Detergent Cycle:

Rinse with water to remove detergent residues.
->Circulate the solution to dissolve fats, proteins, and mineral deposits.
->Heat the solution if required (e.g., 60-80°C) to improve cleaning efficiency.

3. Intermediate Rinse:

->Rinse with water to remove detergent residues.

4. Acid Wash (Optional):

->Use an acidic solution to remove mineral scaling and residues.
->Usually followed by another water rinse.

5. Final Rinse:

->Perform a final rinse with purified water (sometimes hot water) to ensure all cleaning agents are removed.

5. Sanitization (Optional):

->Depending on the product, a sanitizing agent like chlorine or peracetic acid may be used.
->Ensures microbial control before restarting production.

Safety Measures:

Chemical Handling: Ensure staff use proper personal protective equipment (PPE) when handling caustic or acidic solutions.

Ventilation: Provide adequate ventilation in areas where chemicals are stored or handled.

Automatic Shutdowns: Install automatic shutdowns for the system in case of temperature or pressure anomalies.

Benefits:

Time & Labor Savings: CIP reduces manual cleaning effort and downtime.

Consistent Results: Automated systems provide reliable and repeatable cleaning processes.

Improved Safety: Eliminates the need for workers to disassemble and manually clean equipment, reducing exposure to chemicals.

Conclusion:

A well-designed and maintained CIP system is critical for ensuring hygiene and efficiency in processing plants. By automating cleaning processes, plants can save time, reduce contamination risks, and maintain high safety standards. Regular monitoring and validation are essential for optimal performance.

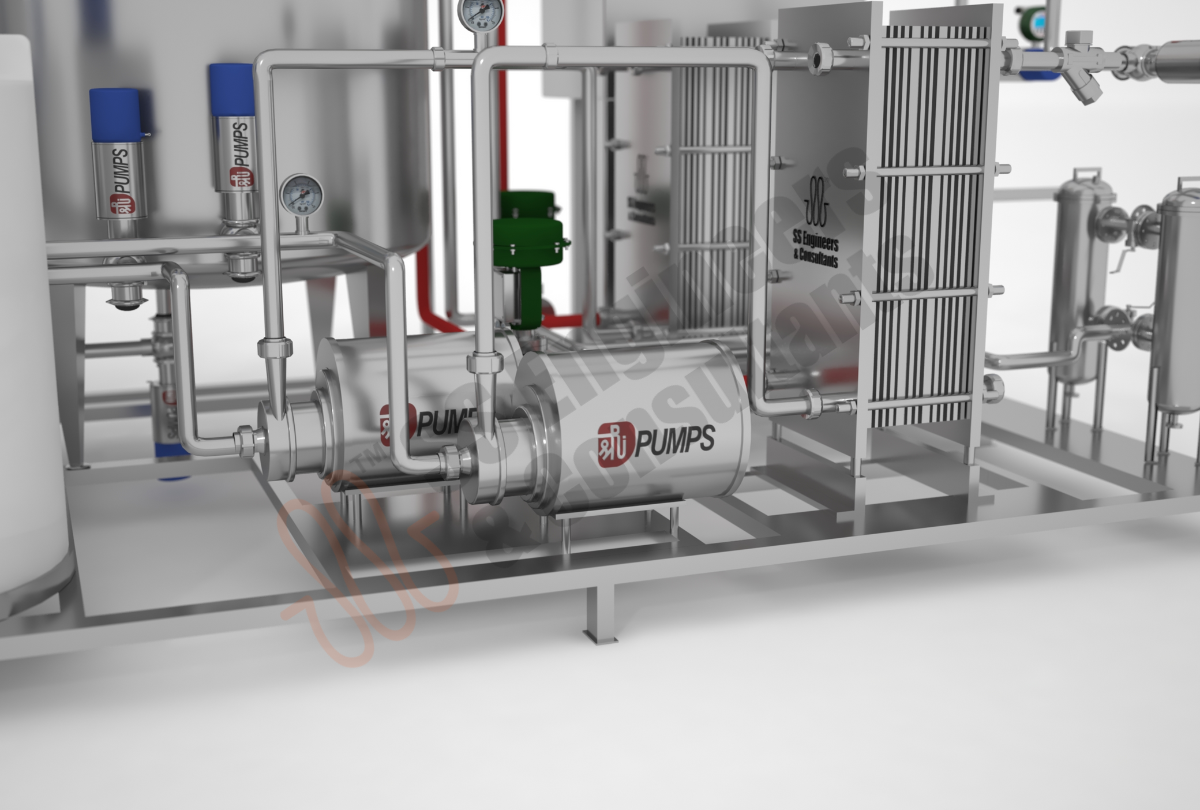

Achieve superior cleanliness with our advanced CIP System Equipment, ideal for dairy, juice, and beverage industries. Designed to sanitize pipelines and equipment without disassembly, our system uses powerful centrifugal pumps to circulate cleansing liquids, ensuring thorough and efficient cleaning.

Optimize equipment uptime and reduce labor with this AI-enhanced system, which maintains high hygiene standards seamlessly. Our CIP technology boosts operational efficiency and supports the demands of modern processing environments.

CATALOGUE

ENQUIRY NOW

Frequently Asked Questions

A Clean-in-Place system is an automated cleaning process used to clean and sanitize the interior surfaces of equipment like tanks, pipes, and pasteurizers in a dairy plant without the need to disassemble them. It helps maintain hygiene and prevent contamination during production.

The Clean-in-Place system ensures that milk processing equipment is thoroughly cleaned and sanitized, preventing bacterial growth and cross-contamination between batches. It also helps meet regulatory hygiene standards and enhances product safety and quality.

A typical Clean-in-Place system consists of a cleaning solution tank, pumps, heat exchangers, and spray nozzles. It also includes control panels to manage cleaning cycles, temperature, and flow rates. The system circulates cleaning agents (like caustic solutions, acid, and water) through the equipment to remove residues and sanitize.

The Clean-in-Place process usually involves several stages: pre-rinse with water to remove loose debris, circulation of a cleaning solution to dissolve residues, a rinse cycle to remove chemicals, and a final sanitizing rinse to kill any remaining microorganisms. The process may be adjusted depending on the level of contamination and type of equipment.

The Clean-in-Place system is used after each production cycle or batch, depending on the plant’s operational needs. Regular cleaning ensures that milk residues, fats, and proteins don’t build up, which could affect product quality and lead to bacterial contamination.
