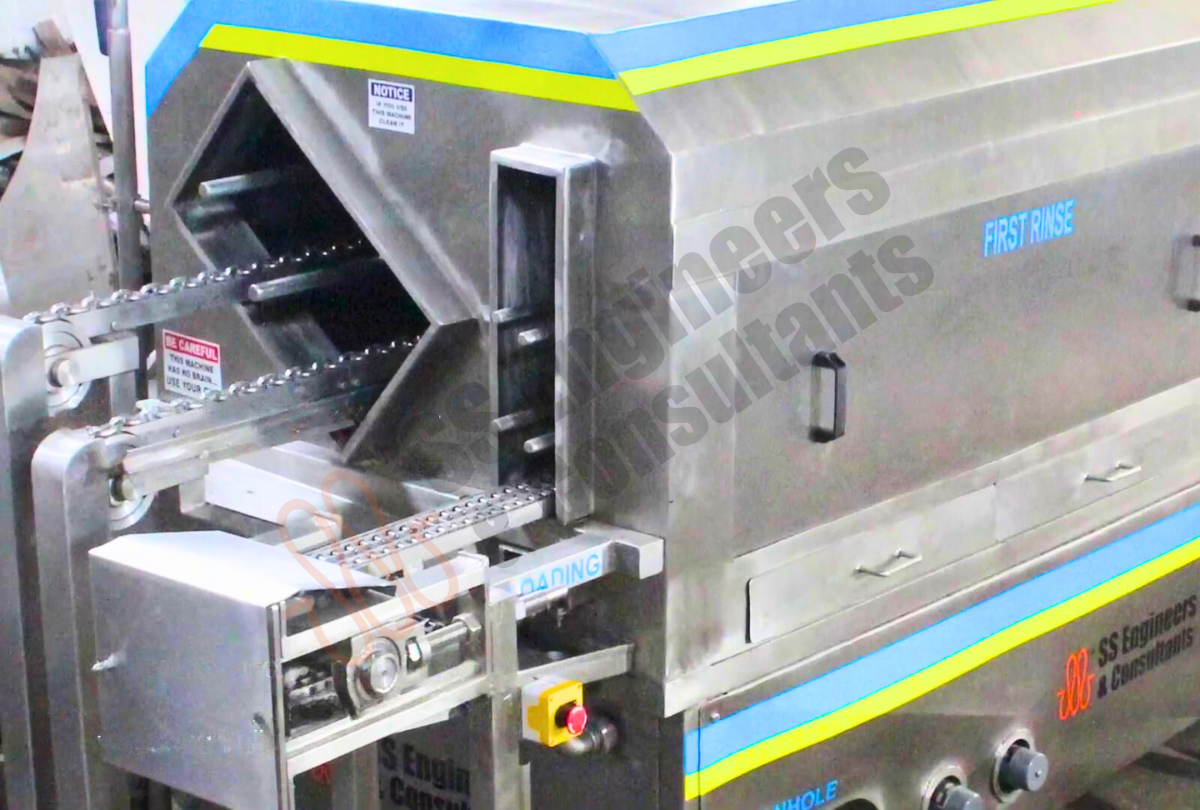

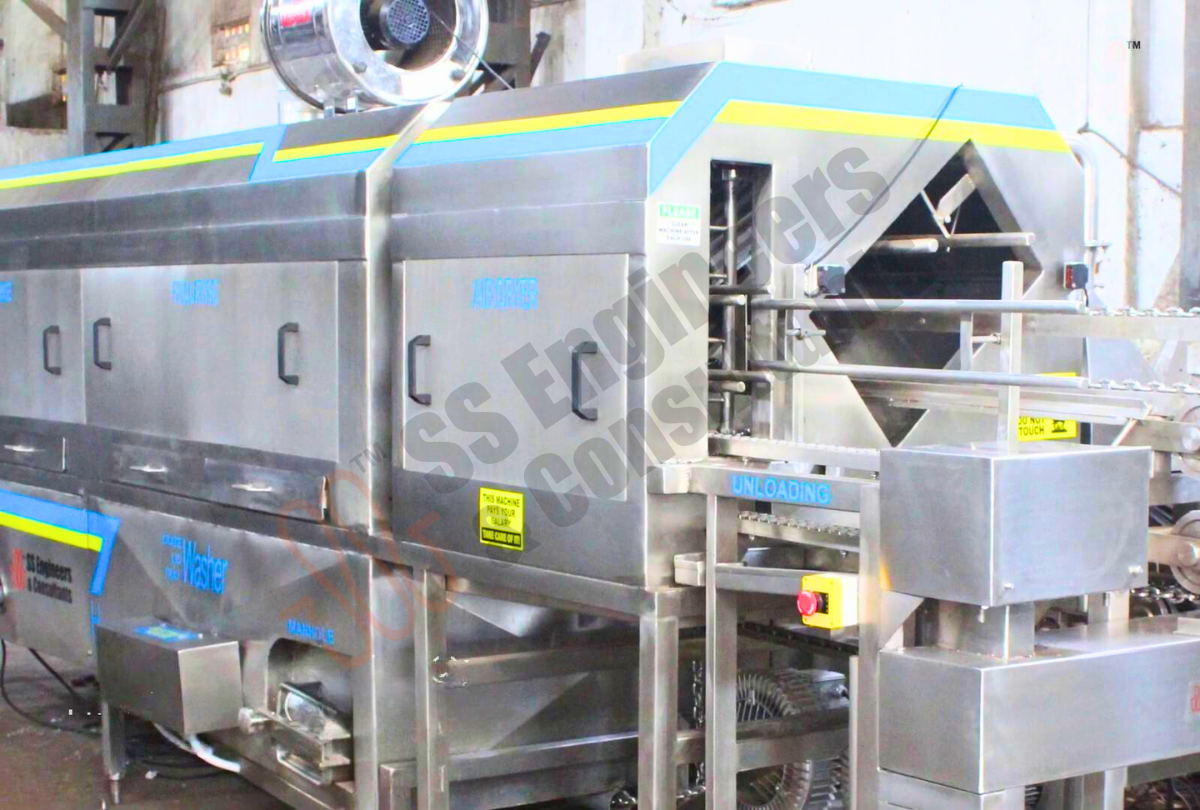

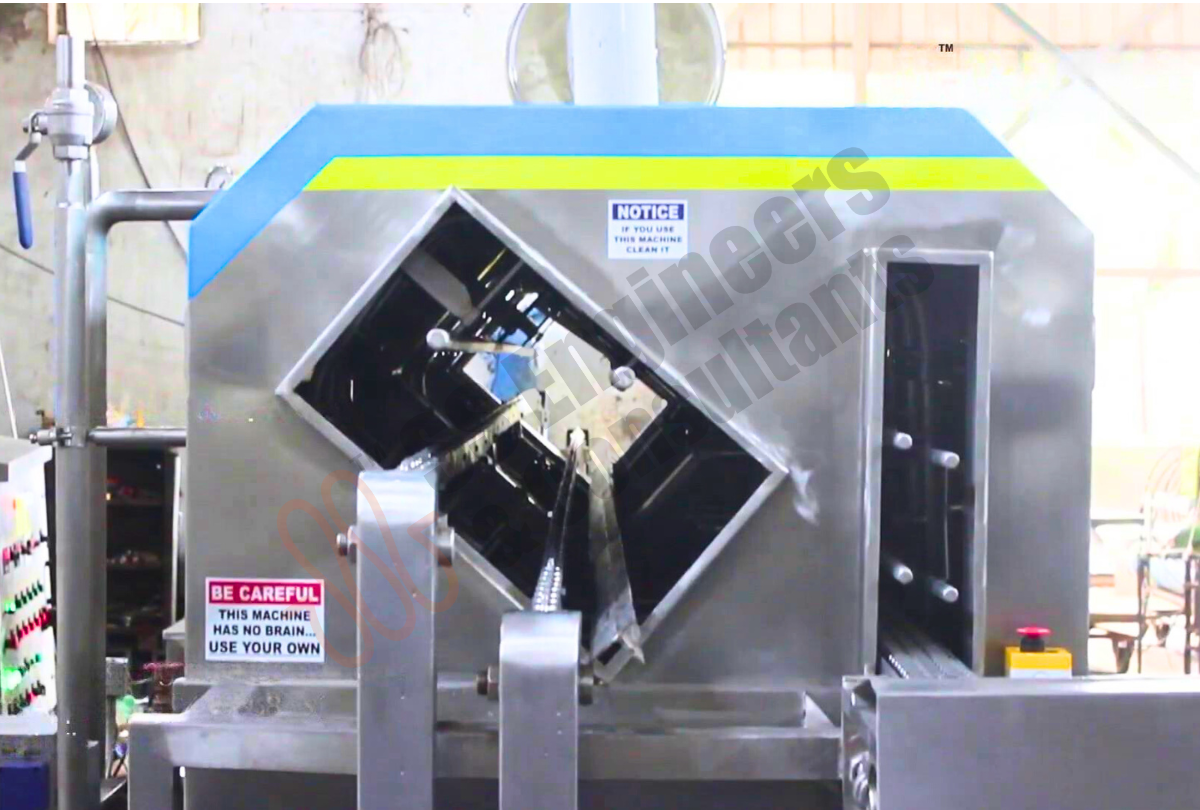

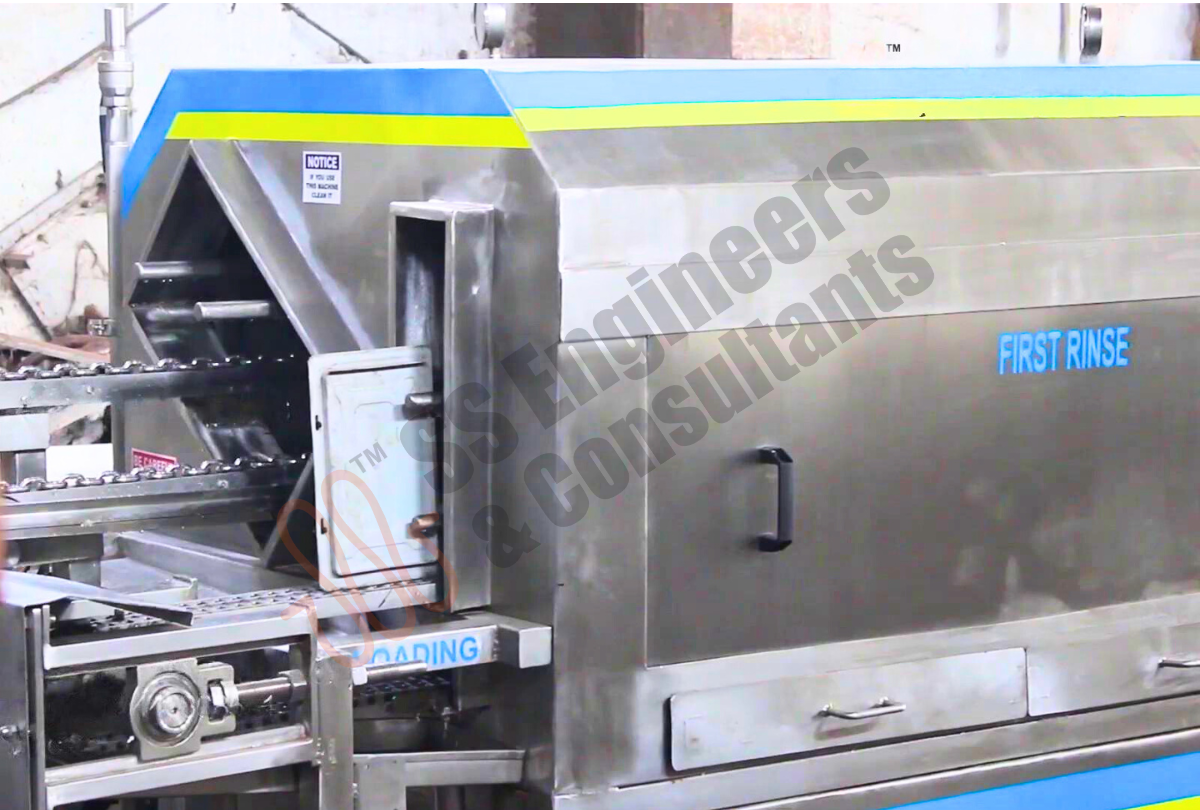

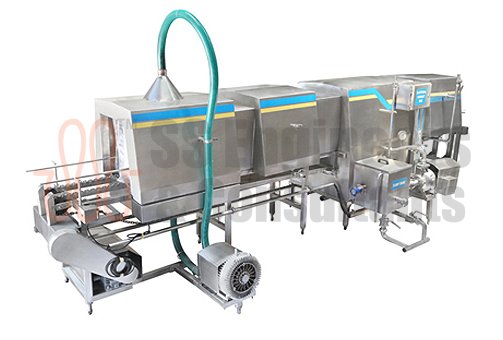

Overview of an Automobile Bin Washer

An automobile bin washer is designed to clean bins, totes, and containers used for automotive parts and components. These washers are essential for maintaining cleanliness and preventing contamination in bins that hold sensitive automotive parts.

Key Components of an Automobile Bin Washer:

1. Pre-Wash and Main Wash Chambers: :Separate chambers for initial and thorough cleaning.

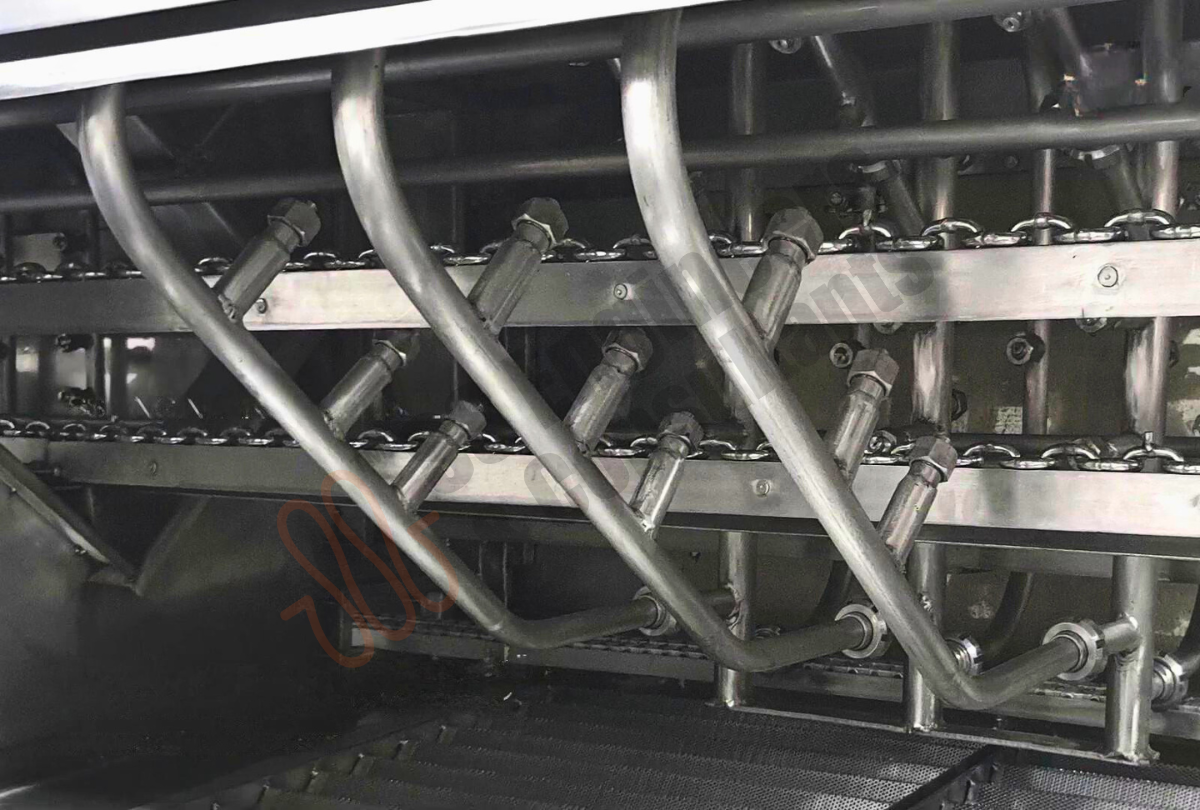

2. High-Pressure Water Jets:Located on all sides to clean every part of the bin.
3. Detergent Dispenser: Automatically dispenses cleaning solution for effective removal of grease, oil, and dirt.
4. Heating System:Heats water to specified temperatures for efficient grease and oil breakdown.
5. Filtration and Recycling System: Filters and recycles water for efficient and eco-friendly operation.

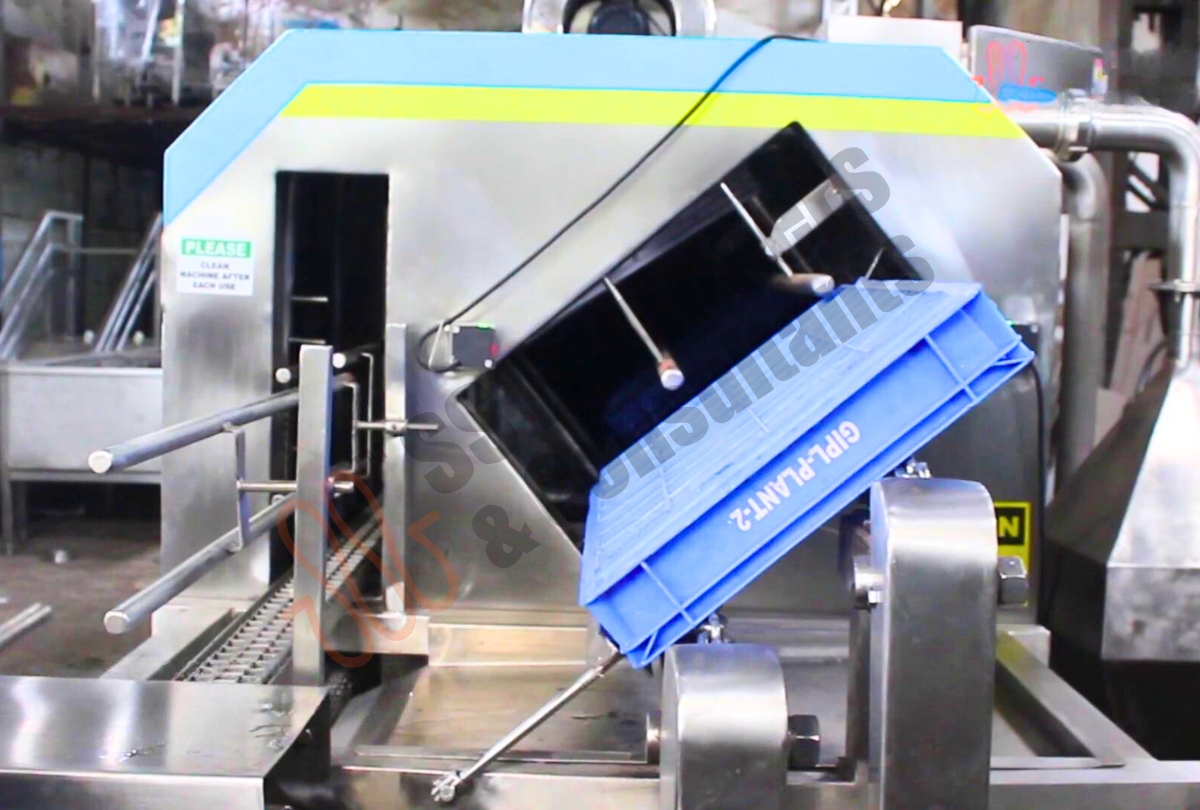

6. Conveyor or Bin Loader:Transports bins into the washer, either through a conveyor belt or a loading mechanism.
7. Drying System: Heats air for drying bins, eliminating moisture after washing.
8. Packaging Line: Packs paneer in vacuum-sealed or other sanitary packaging.
9. Control Panel: User interface for customizing wash cycles, temperatures, and drying time.
10. Safety Sensors: Monitors for proper operation, detects blockages, and ensures safe usage.

Automobile Bin Washer Operation Steps

1. Preparation

->PreparationLoad bins onto the conveyor belt or loading system. Ensure bins are properly placed for optimal cleaning.
->Select the appropriate cleaning cycle based on bin type and level of contamination (e.g., standard wash, heavy-duty wash, etc.).

2. Pre-Wash:

->Bins enter the pre-wash chamber, where high-pressure water jets remove loose dirt and debris.
->This step minimizes contaminants before the main wash, optimizing detergent effectiveness.

3. Main Wash:

->The washer dispenses a controlled amount of detergent into the main wash chamber.
->Heated water and detergent are sprayed from high-pressure jets, targeting all surfaces of the bin, effectively removing grease, oil, and grime.
->Duration of this cycle varies based on bin material and contamination level.

4. Rinse Cycle:

->Bins are thoroughly rinsed with clean water to remove residual detergent.
->High-pressure water jets rinse all areas to ensure no residue is left, preventing contamination in future use.

5. Drying Cycle:

->Bins move to the drying area, where heated air removes moisture from all surfaces.
->Adjustable drying time settings cater to different bin types, ensuring bins are fully dry before being returned to service.

6. Unloading:

->After drying, bins are automatically unloaded or moved to a designated area for manual collection.

Operational Best Practices:

Cycle Selection: Choose the right cycle based on bin material and contamination type; avoid heavy-duty cycles for delicate bins.

Regular Maintenance: Schedule routine maintenance for water jets, heating elements, and conveyors to ensure consistent cleaning performance.

Detergent Use: Use manufacturer-recommended detergents and follow dosing instructions to avoid buildup and ensure effective cleaning.

Temperature Control: Maintain optimal temperatures during the main wash and drying cycles for efficient grease and grime removal without damaging bins.

Safety Precautions: Ensure operators are trained on using safety sensors, emergency stops, and PPE requirements.
